Description

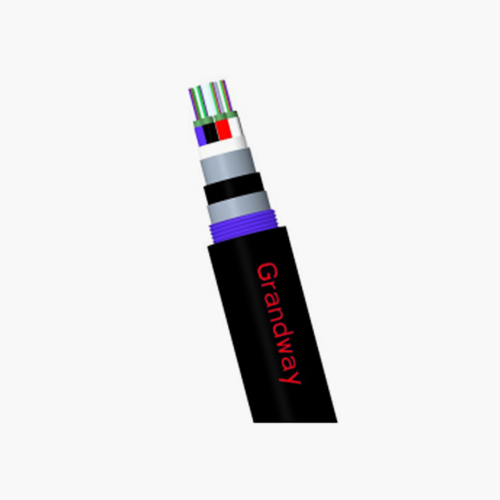

Structure & Capability –

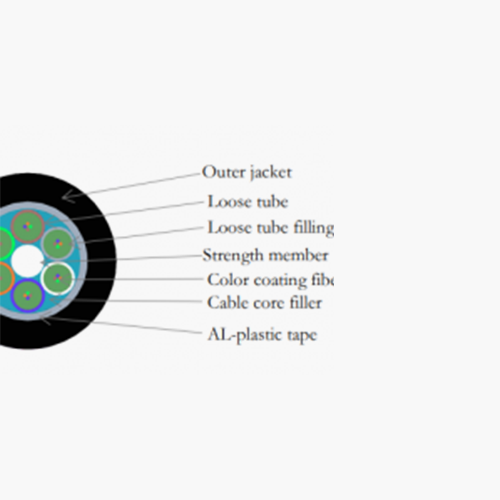

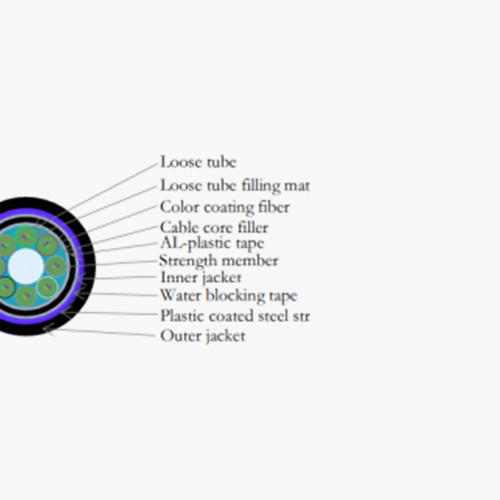

| Structure | |
|---|---|
| Structural composition | Refer to the end face structure drawing above |
| Fiber type | G652, G655, G657, OM1, OM2, OM3 or other mode optical fibers |
| Strength member | FRP or other materials |
| Inner jacket | PE or other materials |
| Outer jacket | PE or other materials |
| Features | |
|---|---|
| Application | Suitable for overhead, pipeline and direct burial |
| Characteristic | PE sheath has good UV radiation resistance |
| The loose tube is filled with special waterproof compound | |
| Double sided plastic coated steel strip (PSP) to improve the moisture resistance of optical cable | |
| Temperature | -40°C~+70°C |
| Structural Parameters | ||||||||
|---|---|---|---|---|---|---|---|---|
| Cable type Fiber count | Loose tube | Cable weight | Tensile (N) | Crush(N/100mm) | Bending Radius(mm) | |||
| Long Term | Short Term | Long Term | Short Term | Static | Dynamic | |||
| GYFTA53-2-6F | 1 | 228 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
| GYFTA53-8-12F | 2 | 228 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
| GYFTA53-14-18F | 3 | 228 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
| GYFTA53-20-24F | 4 | 228 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
| GYFTA53-26-30F | 5 | 228 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
| GYFTA53-32-36F | 6 | 228 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
| GYFTA53-38-42F | 7 | 228 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
| GYFTA53-44-48F | 8 | 228 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
| GYFTA53-50-60F | 5 | 240 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
| GYFTA53-62-72F | 6 | 240 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
| GYFTA53-74-84F | 7 | 240 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
| GYFTA53-122-132F | 11 | 326 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
| GYFTA53-134-144F | 12 | 326 | 1000 | 3000 | 1000 | 3000 | 12.5D | 25D |
Options –
2km or other customized length;
Black or other customized color;
Other requirements of customers;
This document is for reference only,refer to the technical specification for details.
