Description
Parameter
| Structure | |
|---|---|

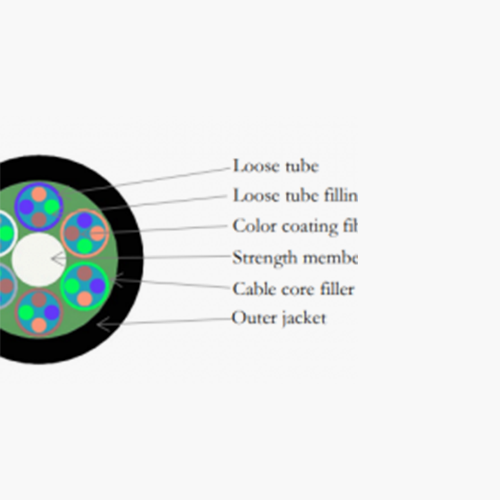

| Structural composition | Refer to the end face structure drawing above |
| Fiber type | G652、G655、G657、OM1、0M2、0M3 or other mode optical fibers |
| Strength member | FRP or other materials |
| Outer jacket | PE or other materials |
| Features | |
|---|---|
| Application | Applicable to pipeline and overhead |
| Characteristic | It has good mechanical properties and temperature characteristics |
| The loose tube is filled with special waterproof compound | |
| Complete core filling | |
| Single non-metallic center reinforcing core | |
| Plastic coated aluminum tape (APL) damp proof course | |
| Temperature | -40°C~+70°C |
| Structural Parameters | ||||||||
|---|---|---|---|---|---|---|---|---|
| Cable type Fiber count | Loose tube Number | Cable Weight (KG) | Tensile (N) | Crush(N/100mm) | Bending Radius(mm) | |||
| Long Term | Short Term | Long Term | Short Term | Static | Dynamic | |||
| GYFTA-2-6F | 1 | 99 | 400 | 1000 | 300 | 1000 | 10D | 20D |
| GYFTA-8-12F | 2 | 99 | 400 | 1000 | 300 | 1000 | 10D | 20D |
| GYFTA-14-18F | 3 | 86 | 400 | 1000 | 300 | 1000 | 10D | 20D |
| GYFTA-20-24F | 4 | 99 | 400 | 1000 | 300 | 1000 | 10D | 20D |
| GYFTA-26-30F | 5 | 99 | 400 | 1000 | 300 | 1000 | 10D | 20D |
| GYFTA-32-36F | 6 | 99 | 400 | 1000 | 300 | 1000 | 10D | 20D |
| GYFTA-38-48F | 4 | 122 | 400 | 1000 | 300 | 1000 | 10D | 20D |
| GYFTA-50-60F | 5 | 122 | 400 | 1000 | 300 | 1000 | 10D | 20D |
| GYFTA-62-72F | 6 | 122 | 400 | 1000 | 300 | 1000 | 10D | 20D |
Options
2km or other customized length;
Black or other customized color;
Other requirements of customers;
This document is for reference only,refer to the technical specification for details.
