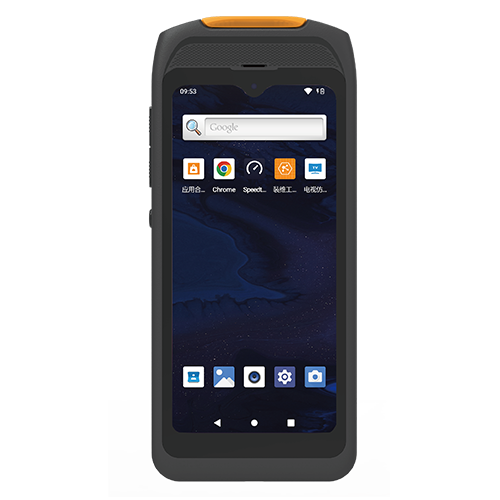

PMT-800 BASE Personal Digital Assistant
- Wired speed measurement capability≥2000Mbps
through 2.5G Ethernet port - 160Mhz WiFi6 speed test capacity ≥1800Mbps
- Support Ookla Speedtest
- 10GPON downlink selective OPM and 10mw VFL
- WiFi signal coverage and strength analysis
- Support IPTV testing and HMDI TV simulation
- Support real-time capture of complete network data packets
Description
PARAMETER
| Items | Specifications |
| Operating System | Android12 |
| CPU | 4-core CPU, 4*A55 2.0GHz 64 bit processor |
| Memory | ROM: 4G; RAM：64G |
| Display Screen | Size：6.3inch Capacitive screen |
| Resolution：1080×2280 | |
| Optical Port | 2.5mm universal VFL port and optical power meter port |
| Electric Port | 1×2.5Gigabit Ethernet Port, 1x1Gigabit Ethernet Port |
| 1xType-C charging port, 1xHDMI port, 1xTF card slot | |
| Wireless | WIFI+Bluetooth |
| Speed Test Capacity | ≥2000Mbps |
| WiFi Test | 2.4G+5G Frequency band |
| Support 160MHz WIFI6 | |
| WiFi speed test capacity ≥1800Mbps | |
| Rear Camera | 8 megapixels |
|
10GPON Selective OPM |
Wavelength Range: 800nm~1700nm |
| Calibrated wavelength: 850nm, 1270nm, 1300nm, 1310nm, 1490nm, 1550nm, 1577nm, 1625nm | |
| Test range: -40~+10dBm | |
| VFL | Output power: 10mw, 650nm±10nm; CW/1Hz/2Hz |
| HDMI TV Simulation | Connect TV signal through HDMI cable and simulate TV display on PMT-800 |
| Packet Capture Function | Real time packet capture and analysis through Wireshark |
| IP Address Acquisition Method | Multiple IP address acquisition methods such as static configuration address, DHCP, PPPOE, etc |
| LAN Testing | Ping, Ipconfig, Trace Route, Route |
| Battery | 8000mAh lithium battery |
| Working conditions | -10℃~ 50℃; 5%~95%(No condensation) |
| Size | 193.5L×86W×33H(mm) |
| Weight | 500g |
