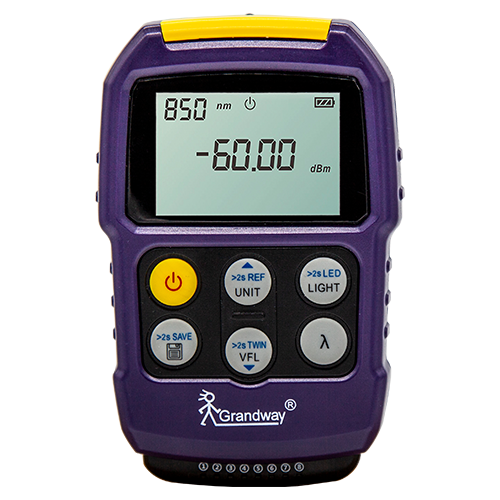

MT500 Multifunctional Power Meter
Functions
MT500 OPM is the latest power meter developed by Grandway. It combined with ergonomics design. It can accurately measure the optical power values of 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm and 1650nm. MT500 also has flashlight, VFL and RJ45 cable testing functions, which are applicable for both basic optical or RJ45 cable test.
Description
Features
Multifunctional integration (OPM, VFL, RJ45 cable test, flashlight)
USB Type-C interface charging
Support self calibration function
50 groups test result storage
Lithium battery is optional
Twin function, auto wavelenght recognition when work with FHS2 series laser source
Parameter
| Items | Specifications |
|---|---|
| OPM | |
| Detector Type | InGaAs |
| Working Wavelength | 800nm~1700nm |
| Display Resolution | 0.01dBm |
| Frequency Identification | 270Hz/330Hz/1kHz/2kHz |
| Optical Port | 2.5mm universal FC/SC/ST |
| Self Calibration | Support |
| VFL | |
|---|---|
| Working Wavelength | 650nm±30nm |
| Output Power | MT500-A2、MT500-B2、MT500-A2-C、MT500-B2-C：2mW MT500-A10、MT500-B10、MT500-A10-C、MT500-B10-C：10mW |
| Output Mode | CW/1Hz/2Hz |
| Optical Port | 2.5mm universal FC/SC/ST |
| Others | |
|---|---|
| Battery(3 versions optional) | 1) 3pcs AAA dry battery |
| 2) 3pcs AAA Ni-MH rechargeable battery | |
| 3) Lithium battery | |
| Data Storage | 50 groups test data |
| TWIN Function | Auto wavelength recognition when working with FHS2 series laser source |
| Auto Power-off | 10 minutes |
| Working Temp | -10℃~+50℃ |
| Storage Temp | -25℃~+70℃ |
| Humitidy | 0～95％ (No condensation) |
| Dimension | 104L×67W×28Hmm |
| Weight | 140g |
| Model | USB Charge | Test Range | Calibrated Wavelength | Accuracy |
|---|---|---|---|---|
| MT500-A2, MT500-A10 | Not support | -70dBm~+6dBm | 850/1300/1310/1490/1550/1625/1650nm | ±0.35dB |
| MT500-A2-C, MT500-A10-C | support | |||
| MT500-B2, MT500-B10 | Not support | -50dBm~+26dBm | ||
| MT500-B2-C, MT500-B10-C | support |
