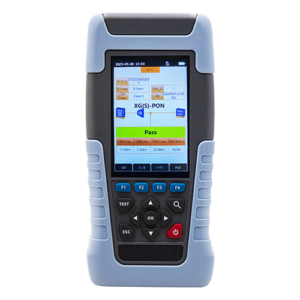

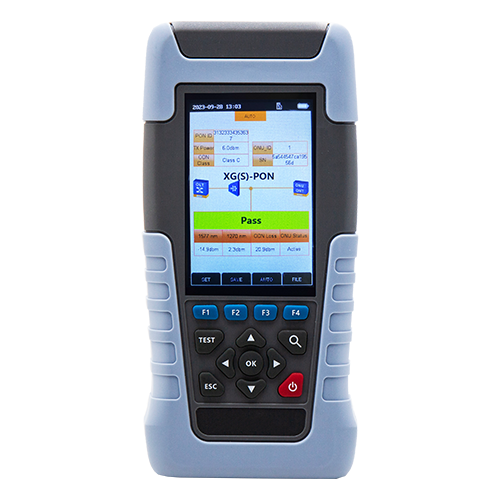

FOH-200XGS-BASE Tester
Functions
With the upgrade of GPON networks to XG(S)-PON, we have launched the new FOH-200XGS-BASE to apply for the installation and maintenance testing of the upgraded Combo PON network. By connecting FOH-200XGS-BASE to the PON network, we can quickly and accurately extract OLT information including OLT PON-ID, ODN class, Tx power, power level and ODN link loss pass/fail per ITU-T.
Description
Features
Automatic PON-ID detection including OLT PON-ID, ODN class, Tx power, and ODN link pass/fail per ITU-T
Downlink 1490nm/1577nm selective optical power measurement
Compatible with GPON ,XG(S)-PON and Combo network
Bluetooth connection with phone a
Low power consumption for extended continuous use
20W quick charger
Parameter
| Items | Specifications |
| Applicable Network | Version 1：GPON+XG(S)PON
Version 2：GPON+XG(S)PON+EPON+10GEPON |
| PON Data Parsing | OLT information: OLT PON-ID, ODN class, Tx power, ODN loss |
| Power Measurement | Downlink: 1490mm and 1577nm selective power measurement |
| Optical Interface | Single SC/APC |
| Charging Port | USB Type-C charging port 20W quick charge |
| Power Supply | 5000mAh lithium battery; Input: 5V/2A |
| Display | 3.5 inch color screen |
| Wireless | Bluetooth connection with Android phone app |
| Data Storage | 16G TF Card |
| Working Temp | -10℃~50℃ |
| Humidity | 5%~95%(no condensation) |
| Dimension | 193×94×47mm |
| Weight | 570g |
