FIM-5 Fiber Microscope
Functions

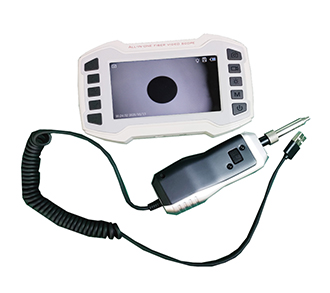

New generation FIM-5 fiber microscope is the new upgraded digital video inspection probe equipped with a 4.5-inch video display. FIM-5 probe can also be directly connected to the computer, laptop and OTDR with one universal USB cable, which is a full-functional all-in-one optical fiber end face inspection microscope.
Description
Features
400X magnification,<1 µm resolution for clear image
4.5 inch display to capture and video data, SD card to save data
Universal USB port to connect OTDR and Laptop
50+ tips available for UPC, APC, MPO, 60 angled connector inspection
Parameter
| Items | Specifications |
|---|---|
| FIM-5 Probe | |
| Magnification | 400X |
| Resolution | <1μm |
| View of Field | X: 480μm |
| Y: 270μm | |
| Focus Way | Manual |
| Focus Speed | 3~5s |
| Alignment | >98% |
| Laser Source | Blue LED |
| Output Port | USB 2.0 |
| Size | 180x22x56mm |
| Weigh | 110g |
| FIM-5 Display | |
|---|---|
| Screen | 4.5 inch |
| Core size | 28mm |
| Resolution | 1920 x 1080JPG |
| Extended Capacity | Support extended 32G Micro SD(TF card) |
| Working Hours | 4 hrs |
| Size | 163x100x35mm |
| Weight | 200g |
| Standard Accessories | |
|---|---|
| FIM-5 Probe | 1pc |
| 4.5 inch display | 1pc |
| 2.5 PC-M (For 2.5mm PC male connector) | 1pc |
| SC-PC-F(For SC-PC female bulkhead) | 1pc |
| FC-PC-F(For FC-PC female bulkhead) | 1pc |
| LC-PC-F (For LC-PC female bulkhead) | 1pc |
| FiberFaceViewer software | 1pc |
| USB cable | 1pc |
| 8G card | 1pc |
| Soft case | 1pc |
