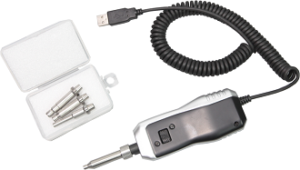

FIM-4 Fiber Microscope
Functions
New generation FIM-4 fiber microscope is the new upgraded digital video inspection probe. FIM-4 can also be directly connected to the computer, laptop, OTDR and tablet with one universal USB cable, which is a full-functional all-in-one optical fiber end face inspection microscope.
Description
Features
⭐400X magnification,<1 µm resolution for clear image
⭐Universal USB port to connect OTDR and Laptop
⭐50+tips available for UPC, APC, MPO, 60 angled connector inspection
⭐Applicable to FHO5000 PRO series OTDR
Parameter
| Items | Specifications |
|---|---|
| Magnification | 400X |
| Resolution | <1μm |
| View of Field | X: 480μm |
| Y: 270μm | |
| Focus Way | Manual |
| Focus Speed | 3~5s |
| Alignment | >98% |
| Laser Source | Blue LED |
| Output Port | USB 2.0 |
| Size | 180x22x56mm |
| Weight | 110g |
| Standard Accessories | |
|---|---|
| FIM-4 Probe | 1pc |
| 2.5 PC-M (For 2.5mm PC male connector) | 1pc |
| SC-PC-F(For SC-PC female bulkhead) | 1pc |
| FC-PC-F(For FC-PC female bulkhead) | 1pc |
| LC-PC-F (For LC-PC female bulkhead) | 1pc |
