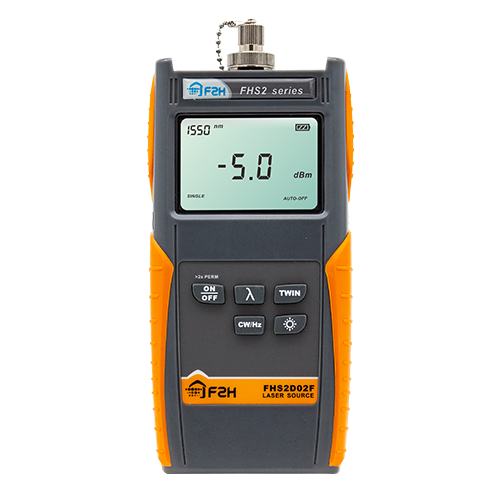

FHS2 Series Laser Source
Functions
The FHS2 Series laser source offers excellent stability and portability for accurate fiber optic testing. Dual-wavelength, triple wavelength and quad wavelength laser sources are available. If user tests a fiber with both FHS2 series laser source and FHP2 series power meter, the TWIN function can be booted. With this function, the power meter can automatically detect the wavelength FHS2 series laser source launched.
Description
Features
Both single mode and multi mode laser are available
Auto wavelength recognition with FHP2 series power meter
Stable output laser, rugged and portable
Support CW, 270Hz, 1kHz and 2kHz mode output
Parameter
| Items | Specifications | |||||
|---|---|---|---|---|---|---|
| FHS2D02 | FHS2D02F | FHS2T01F | FHS2Q01F | FHS2Q02F | ||
| Wavelength | 1310/1550nm | √ | √ | |||
| 1310/1490/1550nm | √ | |||||
| 850/1300/1310/1550nm | √ | |||||
| 1310/1550/1490/1625nm | √ | |||||
| Others | Spectral Width | 5nm | ||||
| Output Power | -5dBm±0.5dB | |||||
| Output Adjustable Range | ±3dB | – | – | – | – | |
| 270/1k/2kHz output frequency | √ | √ | √ | √ | √ | |
| Auto wavelength recognition | √ | √ | √ | √ | √ | |
| Laser type | LD |
|---|---|
| Output Stability | Short Term (15minutes): <0.05dB |
| Long Term (8 hours or above): <0.1dB | |
| Power Supply | 2*Ni-MH AA battery |
| Working Temp | -10℃~+50℃ |
| Storage Temp | -20℃~+70℃ |
| Dimension/Weight | 160L×76W×45H(mm) / 260g |
| Accessories | 2*Ni-MH AA battery, FC adapter, SC adapter, 3*ceramic sleeves,Power adapter, USB cable, Test report, Quick guide, Carrying bag |
| Customization | FC/APC, SC/APC, ST/APC |
