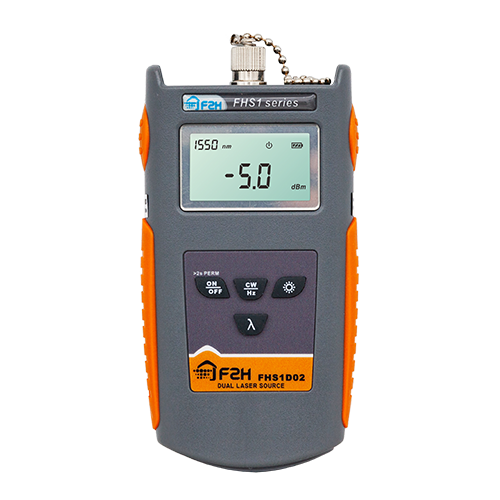

FHS1 Series Laser Source
Functions
The FHS1 Series laser source offers excellent stability and portability for accurate fiber optic testing. The output power is stable -5dBm and support CW/270/1k/2kHz modulated output mode.
LD
Laser type
FC/PC
Optical port
-5dBm±0.5dB
Output power
270/1k/2kHz
Output frequency
4*AAA dry
Battery
Description
Features
Both single mode and multi mode laser are available
Single output interface
Rugged and portable
With backlight and auto power off function
Support CW, 270Hz, 1kHz and 2kHz mode output
Parameter
| Items | Specifications | |
|---|---|---|
| FHS1D02 | FHS1D03 | |
| Output Wavelength | 1310nm & 1550nm | 850nm & 1300nm |
| Emitter Type | LD | |
| Connector | FC/PC | |
| Output Stability | Short Term (15minutes): <0.1dB | |
| Long Term (5 Hours or above): <0.2dB | ||
| Central Wavelength | 1310±20nm & 1550±20nm | 850±10nm & 1300±20nm |
| Spectral Width | 5nm | |
| Output Frequency | 270Hz, 1KHz, 2KHz | |
| Output Power | -5dBm±0.5dB | |
| Accuracy | ±1dB | |
| Auto Power-off | Yes | |
| Back-Light | Yes | |
| Working Temp | -10 to +50℃ | |
| Storage Temp | -20 to +70℃ | |
| Power Supply | 4*AAA dry battery | |
| Dimension/Weight | 115L×65W×30H(mm)/140g | |
| Accessories | FC/PC adapter, 4*AAA dry battery, Carrying bag, Test report, Quick guide | |
