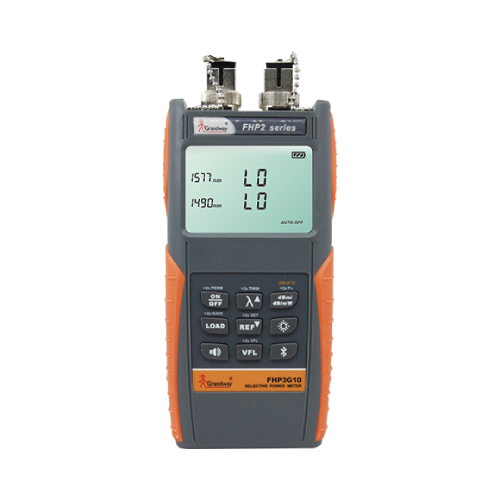

FHP3G10 Selective Power Meter
- Supports co-existence of G/E-PON, XGSPON/10G-EPON and RF video services power test
- Selective power level 1490nm/1577nm/1550nm measurements separately at the same time
- Built-in 10mw VFL and bluetooth function
- 10 groups user-defined Pass/Warning/Fail function
- 999 groups test results can be saved
- Auto power off and backlight function
Description
PARAMETER
| Items | Specifications |
| Optical Port | OPM: SC/UPC or SC/APC |
| VFL:SC/UPC | |
| Calibrated Wavelength | 1490nm/1550nm/1577nm |
| Test Range | 1490nm/1577nm: -40~+10dBm
1550nm: -40~+20dBm |
| Test Accuracy | ±0.5dB |
| Resolution | 0.01dB |
| Display Unit | dBm/dB/mw |
| Isolation | 1490nm>35dB; 1550nm>35dB; 1577nm>35dB |
| VFL | 10mW, CW / 2Hz |
| Memory Capacity | 999groups |
| Threshold Setting | 10groups(Pre-set by PC software) |
| Communication Port | Type-C USB port |
| Bluetooth | Optional |
| Power Supply | 2*2500mAh Ni-MH AA battery |
| External Power Supply | 5V/1A; AC/DC adapter |
| Working Temp | -10℃~+50℃ |
| Storage Temp | -20℃~+70℃ |
| Dimension | 160L×76W×45H(mm) |
| Weight | 249g |
