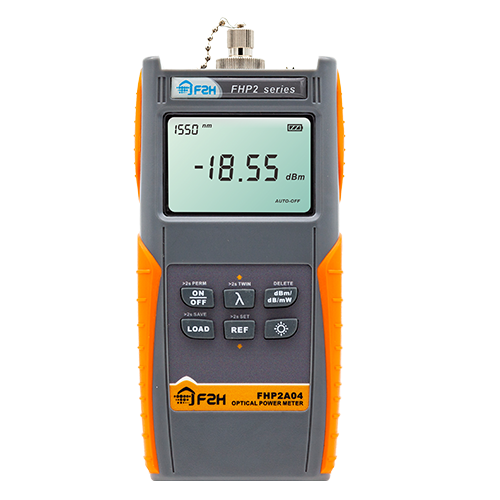

FHP2 Series Power Meter
Functions
FHP2 Series Optical Power Meter is the advanced version of OPM series. It is more functional and intelligent. Under the situation of laboratory, LANs, WANs and CATV as well as long distance optical network. FHP2 series optical power meter together with FHS2 series laser source, can be used to identify optical fiber, measure optical attenuation, verify continuity and evaluate fiber link transmission quality.
Description
Features
Integrated with high performance optical sensor
Auto wavelength recognition with FHS2 series laser source
High accuracy and stability
999 group data storage function
With computer software to export data and make reports
VFL and Bluetooth is optional
Parameter
| Items | Specifications | |
|---|---|---|
| FHP2A04 | FHP2B04 | |
| Sensor Type | InGaAs | |
| Working Wavelength | 800~1700nm | |
| Calibrated Wavelength | Standard: 850/1300/1310/1490/1550/1625nm Optional: 980nm/1270nm/1577nm/1650nm,etc (Please contact sales for other customized wavelengths) |
|
| Test Range | -70~+10dBm | -50~+26dBm |
| Accuracy | ±0.2dB | |
| Resolution | 0.01 | |
| Frequency Detection | 270Hz/330Hz/1kHz/2kHz | |
| Recognizable Wavelength | 850/1300/1310/1490/1550/1625nm *(with FHS2 series laser source) | |
| Frequency Identification Range | -40dbm~+10dBm@1550nm | -20dBm~+26dBm@1550nm |
| Wavelength Identification Range | -40dbm~+10dBm@1550nm | -20dBm~+26dBm@1550nm |
| Unit display | dBm/dB/mw | |
| VFL(Optional) | Working wavelength: 650±10nm Output power: 10mw; Working mode: CW/2Hz |
|
| Bluetooth(Optional) | Can be connected with Android mobile phone software through Bluetooth | |
| Memory Capacity | 999 groups (can be transferred to PC software and generate report) | |
| USB Port | TYPE-C charging/data port | |
| Power Supply | 2* Ni-MH AA battery Input: AC100~240V, 50/60Hz Output: DC5V/1A |
|
| Working Temp | -10°C ~+50°C | |
| Storage Temp | -20°C ~+70°C | |
| Dimension/Weight | 160L×76W×45H(mm) / 265 | |
| Accessories | 2*Ni-MH AA battery, FC adapter, SC adapter, Power adapter, USB cable, Test report, Quick guide, Carrying bag |
|
