FHO3000 Mini Series OTDR
- 5-inch capacitive touch screen, portable design and easy to carry
- Support 10mw VFL,stable laser source, optical power meter, optical loss test, fiber link map test and fiber microscope
- Ultra short 1m/4m deadzone
- 1625nm live fiber testing module is available
- Support sor and PDF export
- Support pass through 1×32 splitter PON network
Description
Model
| Model | Wavelength | Dynamic Range | Dead-zone |
| FHO3000-D28 |
1310/1550nm |
28/26dB | 1/4m |
| FHO3000-D32 | 32/30dB | 1/4m | |
| FHO3000-D35 | 35/33dB | 1/4m | |
| FHO3000-T28F |
1310/1550/1625nm |
28/26/26dB | 1/4m |
| FHO3000-T32F | 32/30/30dB | 1/4m | |
| FHO3000-T35F | 35/33/33dB | 1/4m |
PARAMETER
| Items | Specifications |
| Pulse Width | 3ns~20us |
| Distance Range | 0.1km~120km |
| Event Dead-zone | ≤1m |
| Attenuation Dead-zone | ≤4m |
| IOR Setting | 1.30000~1.70000 |
| Sampling Points | 128,000 |
| Distance Accuracy | ±(0.75m+test distance×3×10-5+sampling resolution) (excluding IOR uncertainty) |
| Loss Resolution | 0.001dB |
| Linearity | ≤0.03dB/dB |
| VFL | Working wavelength: 650±10nm |
| Output power: 10mW, CW/1Hz/2Hz | |
| Stable OLS | Working wavelength: Consistent with OTDR |
| Output power: >-10dBm | |
| Normal OPM | Calibrated wavelength: 850/1300/1310/1490/1550/1625/1650nm |
| Test range: -60~+5dBm |
| Items | Specifications |
| Optical Interface | OTDR: FC/UPC or SC/UPC (APC is available) |
| Display Screen | 5inch capacitive touch screen |
| Electrical Interface | USB2.0 Port
USB Type-C charging port and data port |
| Data Storage | 16GB card |
| Battery | 3.7V/7000mAh lithium battery, support fast charge |
| Working Temp | -10℃~+50℃ |
| Humidity | 0~85%(non condensing) |

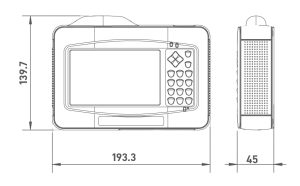

| Dimension | 195×141×44mm |
| Weight | 0.9kg(with battery) |
Notes
1: Please consult us for more customized models.
2: Dynamic range is measured with 20us pulse width, averaging time is 180s, SNR=1.
3: Event dead-zone is measured with 3ns pulse width.
4: Attenuation dead-zone is measured with 3ns pulse width.
