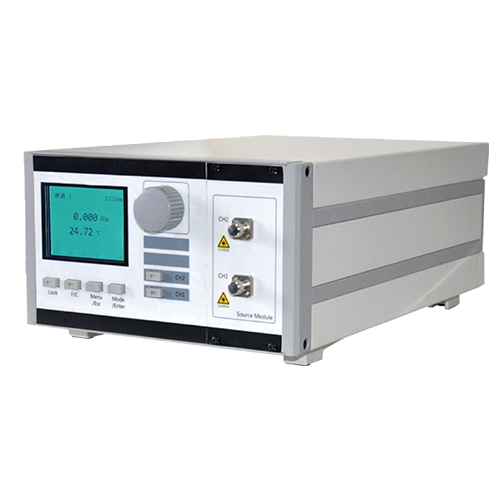

FBS8001 Desktop Laser Source
Functions
FBS8001 Desktop laser source is an ideal instrument for scientific research and production under the condition of large variation range of attenuation and required stable power and wavelength. It is widely used in optical communications, optical transmission and other fields of scientific research, production and engineering.
1~4 channels
Output channel
2mw/5mw/10mw/customized
Max output power
DFB/customized
Laser type
1310nm/1550nm/customized
Wavelength
FC/APC or customized
Optical port
Description
Features
-High stability of output power: 0.005dB
-The output power can be adjusted independently
-Good wavelength stability
-High precision APC and ATC circuits
-CWDM or DWDM or any other wavelength is optional
-Support 1~4 channel laser source
Parameter
| Items | Specifications |
|---|---|
| Output Channel | 1~4 channels |
| Max Output Power | 2mw/5mw/10mw/customized |
| Wavelength | 1310nm/1550nm/customized |
| Laser Type | DFB/customized |
| Stability | ±0.005dB(15 mins/10mw, 25 ) |
| ±0.025dB(8 hrs/10mw, 25 ) | |
| Return Loss | >45dB |
| TEC Stability | ±0.1°C |
| TEC Working Range | 20~30°C |
| Optical Interface | FC/APC (or customized ) |
| Output Adjustment | 0.2mw(Coarse), 0.1mw(Fine) |
| Communication Port | RS232 |
| Display | 3.5-inch TFT color LCD |
| Power Supply | AC 90~260 |
| Temperature | Working temp: 0~50°C , Storage temp: -40~80°C |
| Dimension/Weight | 235×380×145mm/about 4kg |
