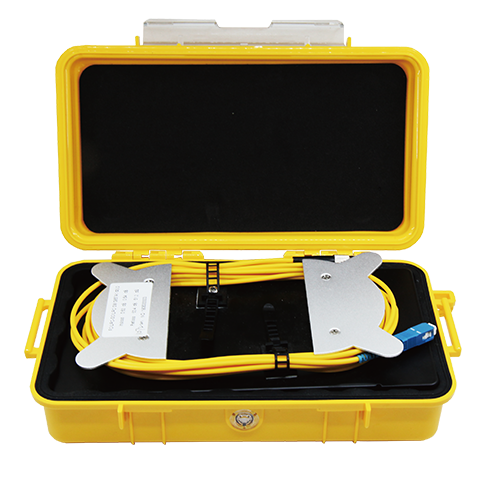

F2H-LFC Launch Fiber Cable
- Compact and ruggedized, easy to carry
- Excellent waterproof and dustproof performance
- Non-metal construction will not corrode or
conduce electricity
Description
Parameter
| Items | Specifications |
| Dimension | 238(L) x 141(W) x 67(H)mm |
| Fiber Type | G.657A/G.652D (MM can be customized) |
| Typical Loss | <0.5dB @ 1310nm for 1,000 meters |
| Connector Type | FC/SC/LC selectable |
| Polishing Type | APC/UPC selectable |
| Box Material | Polypropylene |
| Color | yellow |
| Weight | 0.75kg / 0.35kg (without fiber) |
| Operating Temperature | -40~+55°C |
| Ordering Information | |
| Name | LFC=Launch Fiber Cable |
| Connector 1 | SC=SC/UPC;AS=SC/APC;FC=FC/UPC; AF=FC/APC;LC=LC/UPC;AL=LC/APC |
| Connector 2 | SC=SC/UPC; AS=SC/APC; FC=FC/UPC; AF=FC/APC; LC=LC/UPC; AL=LC/APC |
| Fiber Type | 7A1=SM G.657.A1; 2D=SM G.652.D; OM1=MM 62.5/125um; OM2=MM 50/125um |
| Cable Length | 0.5=0.5km; 1=1km; 2=2km |
