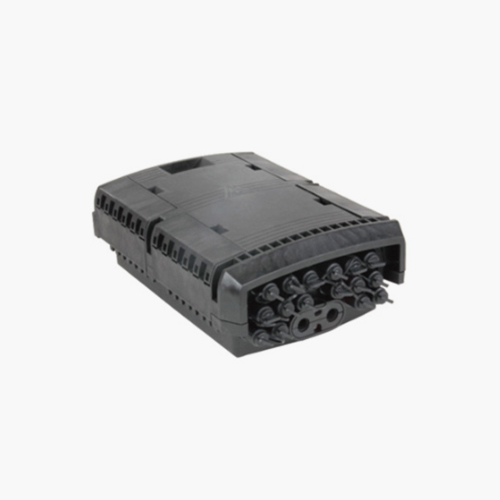

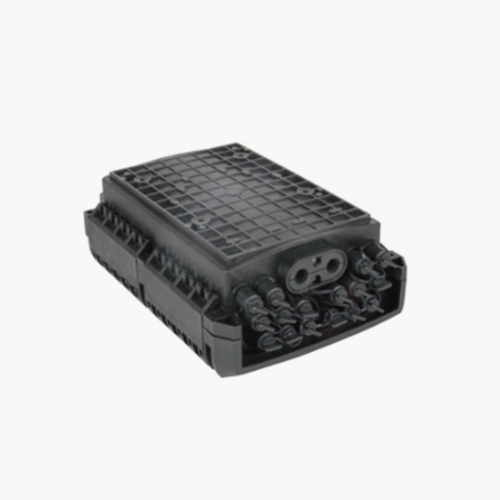

F2H-FTB-16-G Fiber Termination Box-16 Cores
Functions –
Grandway’s fiber optic closure provides a high density wall mounted or pole mounted solution for next generation networks, which aims to provide and manage fiber splitters in a limited space. It is designed for FTTH (Fiber to the Home) or FTTB (Fiber to the Building) with protective housing for all the passive fiber equipment installed inside.
Description
Features –
– Water-proof design with IP68 Protection level.

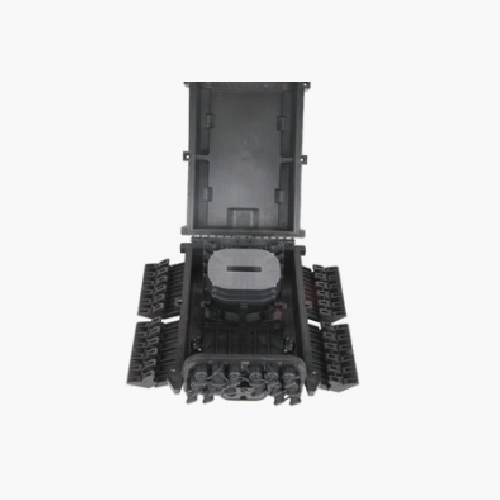

– Integrated with cable management system.
– Manage fibers in a reasonable fiber radius condition.
– Easy to maintain and extend the capacity.
– Fiber bend radius control more than 40mm.
– 1 uncut cable port and 2 round cable ports for feeder cables.
– 16 ports cable entrance for 2*3mm FTTH drop cable.
– 1*16 or 1*8 Insertion Module Splitter can be installed
Parameters –
| Material | Size (mm) | Max Capacity | Inlet/Outlet Ports | Max. Cable Diameter | Uncut | Net weight (Kg) | Gross weight (Kg) | Color | Optional | |
|---|---|---|---|---|---|---|---|---|---|---|
| Input | Output | |||||||||
| PP | 350×245×130 | 16 | 2/16 | Ø13.5mm | 2.0×3.0mm | Support | 2.5 | 3.5 | Black | 1. pigtails |
